Spiral Film Wrapping of rolled products without glues or tapes – totally adhesive free!
No more accidental wrapping around turning rollers. No more downtime for cleaning glue spills. No more loose film tails. No more lost labels!

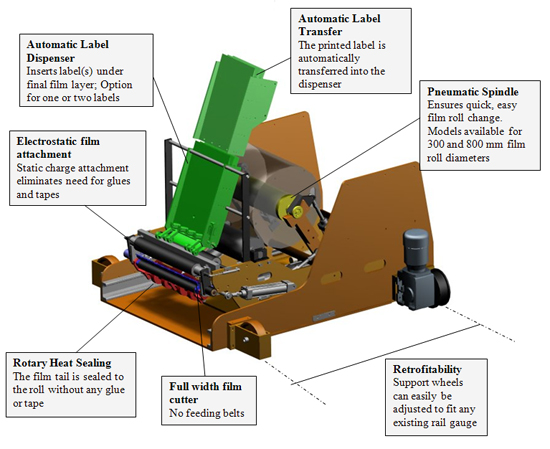

MiniWrapper operational benefits:

• The film is initially attached to the roll with static electricity
• The film tail is efficiently sealed to the roll with rotary heat seals
• Open design – High accessibility for service and operation
• Capable of very high speed operation
• Very few moving parts – Minimal downtime for maintenance
• Fully automatic operation – Low manpower requirements

Installation photos

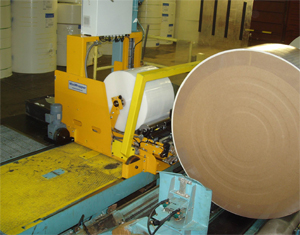

MiniWrapper Model 300
Installed directly after the winder. Roll transfer is semi-automatic. Wrapping cycle is fully automatic.

Photo: Decor Paper Mill, Sweden

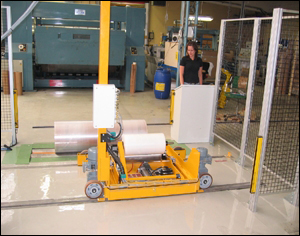

MiniWrapper Model 300-OH
Overhead design, can also be installed on a winder. Film attachment is manual, wrapping cycle is manually or automatically controlled.

Photo: Assembly shop, Sweden

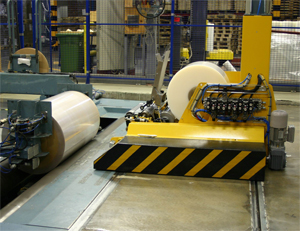

MiniWrapper Model 800
Fully automatic roll wrapping system with automatic header cutting and header positioning. Roll handling system by LAMB AB.

Photo: Fine Paper Mill, UK

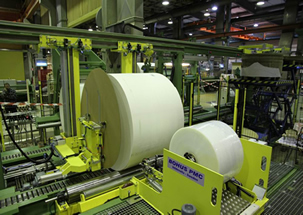

MiniWrapper Model 800
Retrofit Wrapping Head, up-grading an existing film wrapper. Installation was made in less then 24 hours.

Photo: Board Mill, North Carolina, USA

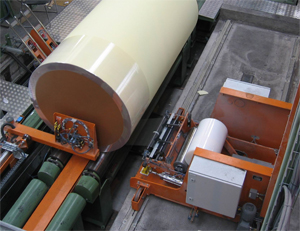

MiniWrapper Model 800L
Retrofit Wrapping Head, up-grading an existing film wrapper. Equipped with automatic label dispenser.

Photo: Speciality Paper Mill, Sweden

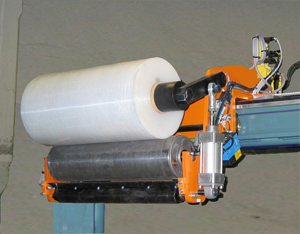

MiniWrapper Model 800L2
Very high speed film wrapper, equipped with automatic label dispenser for two body labels. Roll handling system by Advanced Dynamics Inc.

Photo: Fine Paper Mill, Alabama, USA

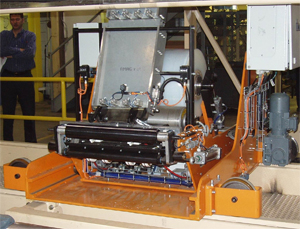

MiniWrapper Model 800
Fully automatic film wrapper, equipped with automatic header positioning system, roll data system, label applicator for two body labels. Roll handling system by Lamb AB.

Photo: Rolled Fluff Pulp Mill, Sweden
